35V Illuminated Push Button Switch Bend Foot 90° Reset Side Key Switch With LED

Brand Name : KKG

Model Number : PB01-1010RL-4-101

Place of Origin : China

MOQ : 500pcs

Delivery Time : 3-5Days

Rated voltage : 35V

Rated current : 0.1A

Contact Resistance : 100mΩ

Insulation Resistance : 100MΩ

Product Nature : upset

marketing Mode : Factory direct sales

Operating Force : 160gf 250gf

Life : 100000/cycles

Travel : 0.25mm

Contact Now

Illunated Tact Switch,Bend Foot 90° Reset Side Key Switch With LED

Product Description


The basic features of the illunated tact switch include:


1. Provide luminous and non-luminous models for your choice;
2. Molded embedded terminals to prevent the intrusion of flux, solution and other impurities;
3, crimping terminal to ensure PC installation firmly and reliably, prevent displacement in the

welding process;
4, Dongguan touch switch series: 4x4X1.5, 4x4X1.6, 4x4X1.7 Note: there are copper head, white

plastic head for customers to choose;
5, with bracket, square head. Handle color: black, red, white, green, blue, yellow, brown and other

special colors;
6, 6X6 series handle height H=4.3, 5, 5.5, 6, 7, 7.3, 8, 9, 9.5, 10, 11, 12, 13, 15, 17, 21 and other

special heights.

Illunated tact switch's Specification

item
value
Certification
CE
Place of Origin
China
Dongguan
Brand Name
KKG
Model Number
PB01-1010RL-4-101
Max. Current
DC35V 10mA
Max. Voltage
250V
LED
yes
switch Mechanical Life
100,000Times
switch Operating force
160gf 250gf
switch size
7.5x11.5mm
Rating
10mA 35V DC
Operating Force
160gf 250gf
Withatand Voltage
AC 250V 1 Minute
Insulation Resistance
100 MΩ Mim. 250V DC
Contact Resistance
100MΩ
Operating Temperature
-30°~ +80°
Mechanical Life
100,000 Cycles

35V Illuminated Push Button Switch Bend Foot 90° Reset Side Key Switch With LED35V Illuminated Push Button Switch Bend Foot 90° Reset Side Key Switch With LED

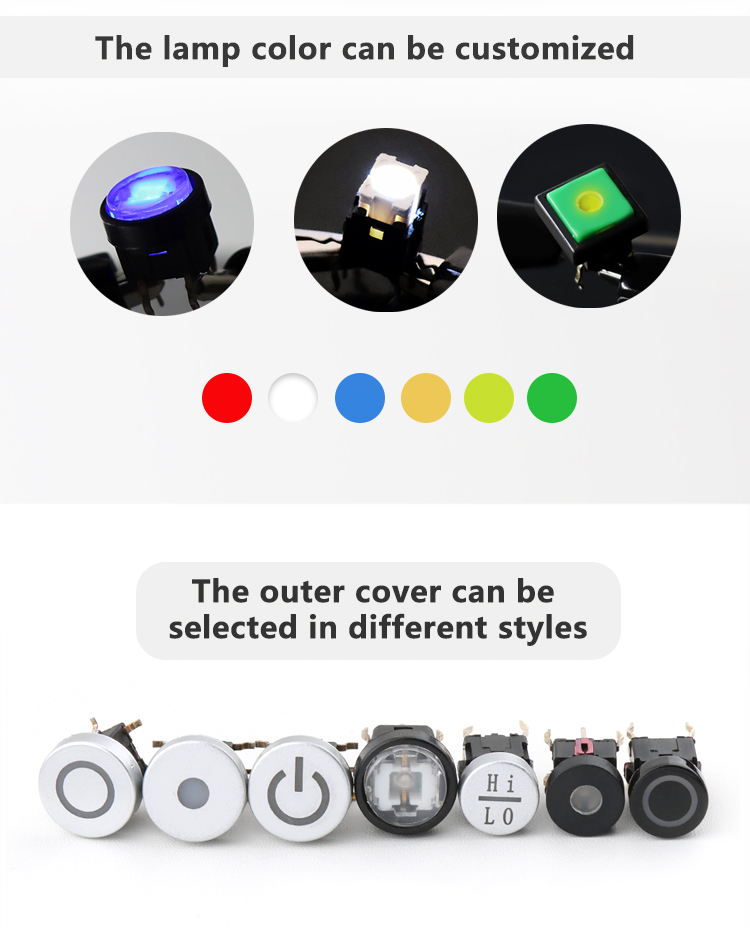

We have a complete range of illunated tact switch products, from LED light color, cap, size and structure to provide

you with considerable choice and matching......

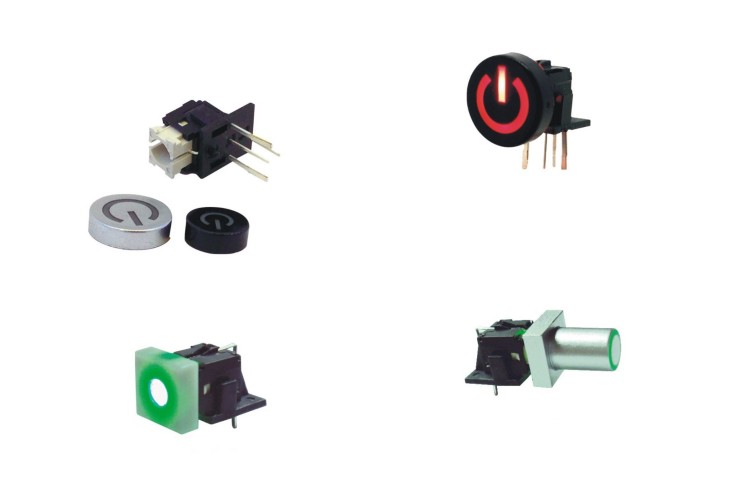

Product Display


35V Illuminated Push Button Switch Bend Foot 90° Reset Side Key Switch With LED

35V Illuminated Push Button Switch Bend Foot 90° Reset Side Key Switch With LED
